Section and Elevation for the cafe

These two are my section plans for the cafe. the boat drawing would be a painting. I 've tried to show scale by using people and being aware of scale.

This is my elevation plan. I've wanted to keep the outside of the cafe super simple so that is doesn't stand out; I want it to blend into the landscape. I've put in big windows and a big door to try and keep the building bright and open. I originally tried putting windows on the roof but I felt that was a bit too much.

Cafe Plans

These bottom two are really rough plans of the cafe. I really wanted it to be an open place for people to meet at whether it be friends and families or strangers. I have tried to make it family friendly by adding in a play area, parents room and sofas. However I did get a little carried away with size but that can be easily fixed by having a smaller play are, less bathrooms and a smaller kitchen. I have added in many windows to keep it an open, bright and welcoming. I did forget about lights by accident.

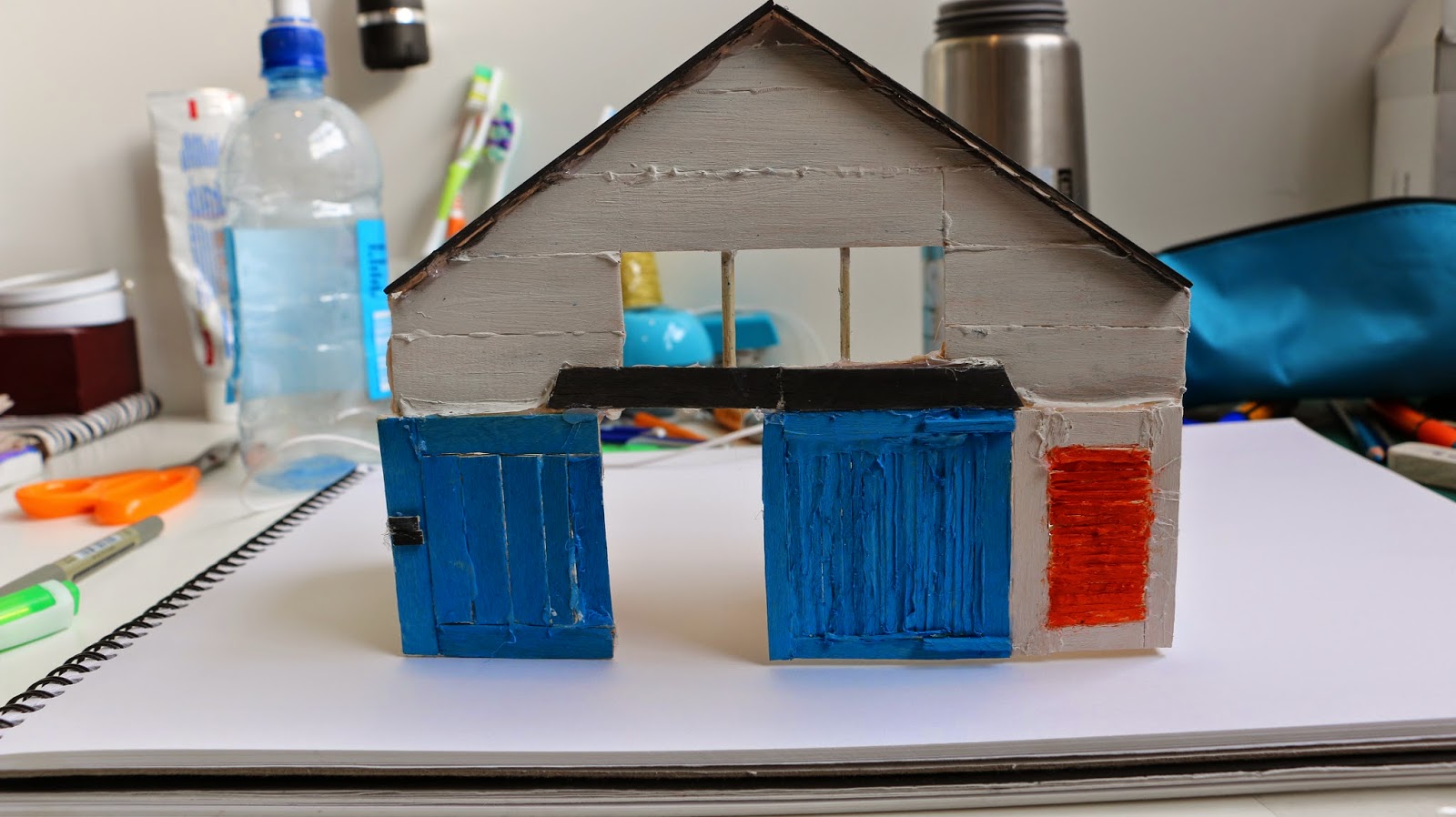

Photographs of my Model

Materials used:
-Match sticks
-Popsicle sticks
-Hot glue gun and hot glue
-Paint

Video of the boatsheds

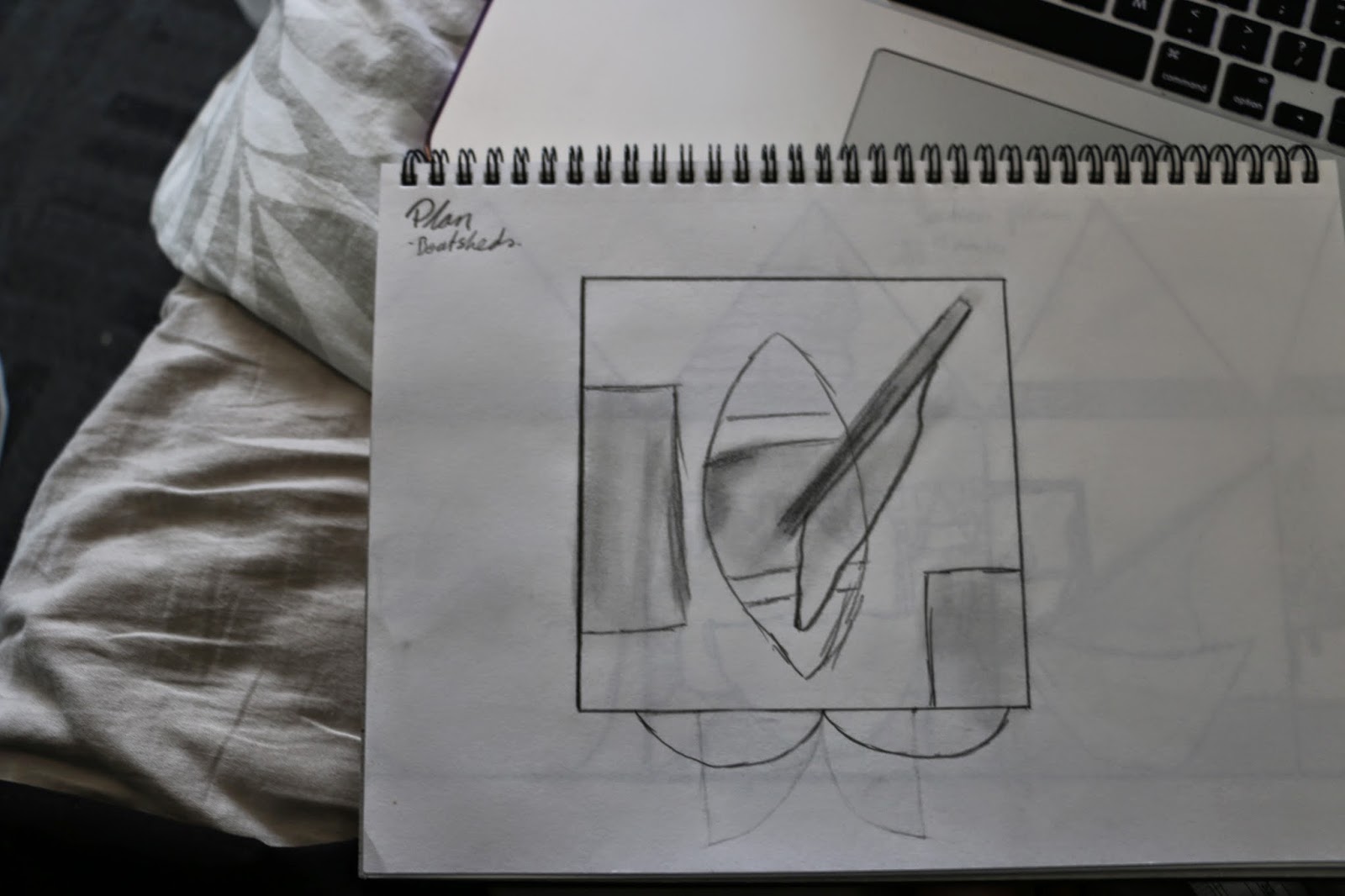

Quick plan Sketches

Class work

Quick sketches

Boat sheds Audio
